40W Tunable White LED Driver
Non-Isolated Flicker Free Sensor Driver
MOQ ：100 piece
Lead Time ：10 Days
Seller Support : Trade Authenticity Guaranteed & Accepting
Payment : L/C,T/T,Credit Card,Western Union,Money Gram,Pay Pal
Departure Port : Shenzhen
Product details
Supply Ability
- Supply Ability：50000 piecesWarranty(Year)：3 Year
Packaging & Delivery
- Length：210 cmWidth：31 cm
- Height：21 cmLogistics Weight：0.143 kg/piece
- Packaging：60 piece
Product Specifications
- Brand name：Jusin
- Housing Material：Other
- Voltage Regulating Mode：Other
- Output voltage：50-80Vdc
- Power：20W
- IP Rating：IP20/Other
- Application：Other
- Output current：250mA
- Efficiency：84%
- Input voltage：Other
- Certification：TUV CB SAA
Product Description

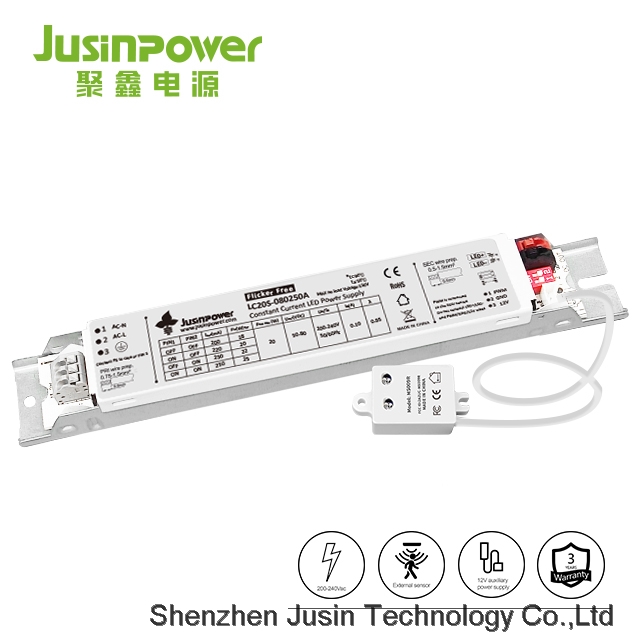

Non-Isolated Flicker Free Sensor Driver
The non-isolated and flicker-free sensor driver is a led power supply with an input voltage of 200-240Vac, and the current can be independently selected between 250mA and 500mA by dialing the code, which makes it suitable for LED lamps with different currents.
It has passed TUV, CB, SAA certification, and there are four maximum power options of 22W, 40W, 60W, and 75W.
1. Flicker free
2. 3 years warranty
3. Output Current 250-500mA
4. Passed TUV, CB, SAA certification
Application Scenario:

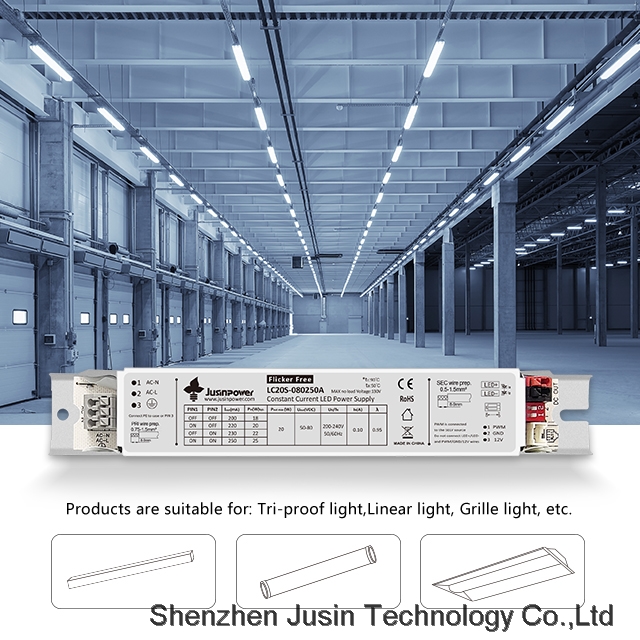

The non- isolated flicker free sensor drivers are suitable for: Tri-proof light, Linear light, Grille light, etc.
Product Details:
It adopts a full series of two-stage flicker-free design, allowing you to better protect your eyes when studying and working.
About The Specifications and Parameters of The Sensor Module and Controller in The Driver.
Sensor Technical Parameters
Input | Operating voltage | 5~24VDC |
Operating current | 23mA | |
Output | Output | PWM |
Sensor Parameters | Microwave frequency | 5.8GHz±75MHz |
Microwave power | <0.3mW | |
Sensitivity | 100%/75%/50%/25% (Refer to remote control) | |
Hold time | 3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control) | |
Daylight threshold | Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control) | |
Stand-by period | 0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control) | |
Stand-by dimming level | 10%/20%/30%/50% (Refer to remote control) | |
Mounting height | Max.9m (Ceiling mounted) | |
Detection range | Radius 4-5m (Ceiling mounted 6m) | |
Operating temperature | -35℃~70℃ | |
Warranty | 5 years | |
Other | Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s. | |
Specification
LC20S
performance | ||
Model | LC20S-800250 | |
Input | Efficiency
| 85%@220Vac full load
|
Voltage
| 200-240Vac
| |
Frequency Range(Hz)
| 50Hz
| |
Power Factor
| ≥ 0.95@230Vac full load
| |
THD(full load)
| <20%@230Vac full load
| |
AC Current(max)
| 0.1A@230Vac full load
| |
Standby power
| <1W
| |
Inrush current (cold engine start) max | 9.8A@230Vac
| |
peak value | 10.05A@230Vac | |
Leakage current (max)
| 0.11mA | |
Output | Current(mA)/Voltage (VDC) Power(W)
| 50-80Vdc/250mA/20W
|
Current ripple
| <5%
| |
Linear Regulation
| ±5%
| |
No-load output voltage | <100V
| |
Start Time | <1S@230V
| |
auxiliary voltage
| 12V/100mA
| |
Dimming range | 10%-100%（optional）
| |
Protection | Over Temperature
| When temperature is too high，shut down the output, Recovers automatically
|
Over load
| Hiccup, when the output power exceeds ,then,recovers automatically after fault removed
| |
Short Circuit
| Close output，recovers automatically after fault removed
| |

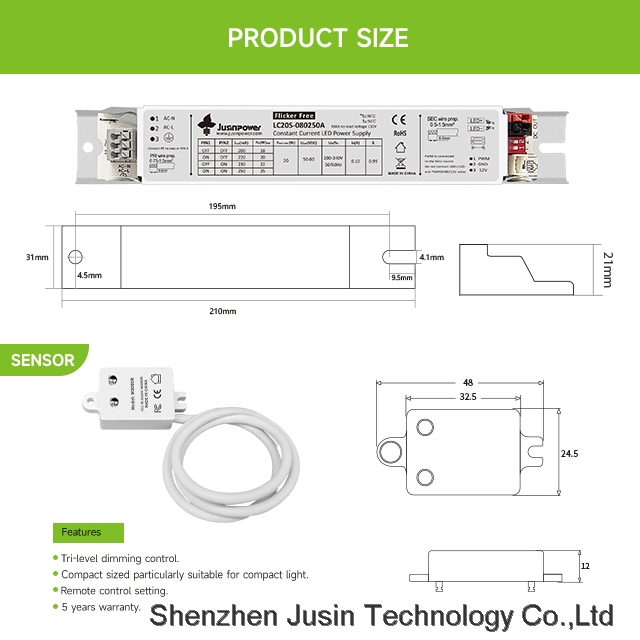

Physical | |
Length
| 199 mm
|
Width
| 31 mm
|
Height
| 21.5 mm
|
Mounting Length
| 196mm
|
Weight (g)
| 143.5g
|
Environmental | |
Operating Temperature
| -20°C to 50°C
|
Storage Temperature，Humidity
| -20°C to 85°C，20-90%RH
|
Case Temperature
| TC=90℃
|
Warranty Tc
| 85°C max for 50k Hr Life
|
Surge protection
| L-N 1KV ， L/N-FG 2KV
|
IP Rating
| IP20
|
Material
| Iron shell
|
Certificate | CE /TUV/3C/CB/SAA certificate |
Series Driver | |||||||
Model
| Max Power
| Input Voltage
| Output Voltage
| Output Current
| Power Factor
| Power Regulation
| Efficiency
|
LC20S-080250
| 22W
| 200-240Vac | 50-80Vdc
| 250mA
| 0.9 | Adjustable
| 84%
|
LC40S-120500
| 40W
| 200-240Vac | 50-120Vdc
| 350-500mA
| 0.9 | Adjustable
| 89%
|
LC60S-170500
| 60W
| 200-240Vac | 72-170Vdc
| 350-500mA
| 0.9 | Adjustable
| 92% |
LC70S-190500
| 75W | 200-240Vac | 72-190Vdc | 250-500mA | 0.9 | Adjustable
| 92% |
